Home Products For-Professional Indoor Lighting LED Down Light LED Slim Downlight - Recessed Series - Square Shape
OVERVIEW
Product description
Product data sheet
LED Slim Downlight - Recessed Series - Square Shape (1)
LED Slim Downlight - Recessed Series - Square Shape (1)
LED Slim Downlight - Recessed Series - Square Shape (2)
LED Slim Downlight - Recessed Series - Square Shape (2)
16558665799487427
LED Slim Downlight - Recessed Series - Square Shape
Code No.
Product benefits

Die-cast aluminum housing

PA diffuser

Separate constant current driver

Product data sheet
PRODUCT DETAILS
TECHNICAL DATA AND BENEFITS

Features

Die-cast aluminum housing

PA diffuser

Separate constant current driver


Application

Shopping mall, hotel, showroom, office Etc.


Name Voltage (V)Power (W)Lumens (lm)CCT (K)CRIPFDimension(mm)Cut-out(mm)ColorMaterialsInstallation
HS-A-F003AC220-240V3W120lm3000K/6000K700.585*85*20mmφ72×72mmwhiteALrecessed
HS-A-F006AC220-240V6W360lm3000K/6000K700.5120*120*20mmφ110×110mmwhiteALrecessed
HS-A-F009AC220-240V9W630lm3000K/6000K700.5140*140*20mmφ130×130mmwhiteALrecessed
HS-A-F012AC220-240V12W900lm3000K/6000K700.5170*170*20mmφ155×155mmwhiteALrecessed
HS-A-F015AC220-240V15W1200lm3000K/6000K700.5190*190*20mmφ175×175mmwhiteALrecessed
HS-A-F018AC220-240V18W1530lm3000K/6000K700.5225*225*20mmφ205×205mmwhiteALrecessed
HS-A-F024AC220-240V24W2160lm3000K/6000K700.5300*300*20mmφ285×285mmwhiteALrecessed
HS-A-F030AC220-240V30W2700lm3000K/6000K700.5300*300*20mmφ285×285mmwhiteALrecessed

OVERVIEW
Product description
Product data sheet

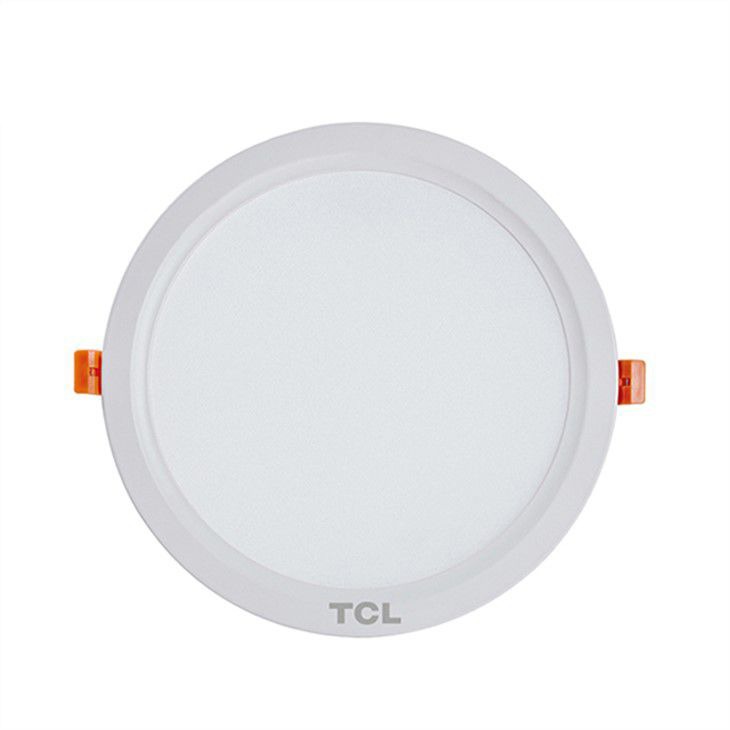

LED Slim Downlight - Recessed Series Round Shape
LED Slim Downlight - Recessed Series Round Shape
16558665799487427
LED Slim Downlight - Recessed Series Round Shape
Code No.
Product benefits
Die-cast aluminum housing

PA diffuser

Separate constant current driver

Product data sheet
PRODUCT DETAILS
TECHNICAL DATA AND BENEFITS

Features

Die-cast aluminum housing

PA diffuser

Separate constant current driver


Application

Shopping mall, hotel, showroom, office Etc.


Name Voltage (V)Power (W)Lumens (lm)CCT (K)CRIPFDimension(mm)Cut-out(mm)ColorMaterialsInstallation
HS-A-Y003AC220-240V3W135lm3000K/6000K700.5φ85*20mmφ72mmwhiteALrecessed
HS-A-Y006AC220-240V6W360lm3000K/6000K700.5φ120*20mmφ110mmwhiteALrecessed
HS-A-Y009AC220-240V9W630lm3000K/6000K700.5φ145*20mmφ130mmwhiteALrecessed
HS-A-Y012AC220-240V12W900lm3000K/6000K700.5φ170*20mmφ155mmwhiteALrecessed
HS-A-Y015AC220-240V15W1200lm3000K/6000K700.5φ190*20mmφ175mmwhiteALrecessed
HS-A-Y018AC220-240V18W1530lm3000K/6000K700.5φ225*20mmφ205mmwhiteALrecessed
HS-A-Y024AC220-240V24W2160lm3000K/6000K700.5φ300*20mmφ280mmwhiteALrecessed
HS-A-Y030AC220-240V30W2700lm3000K/6000K700.5φ300*20mmφ280mmwhiteALrecessed
