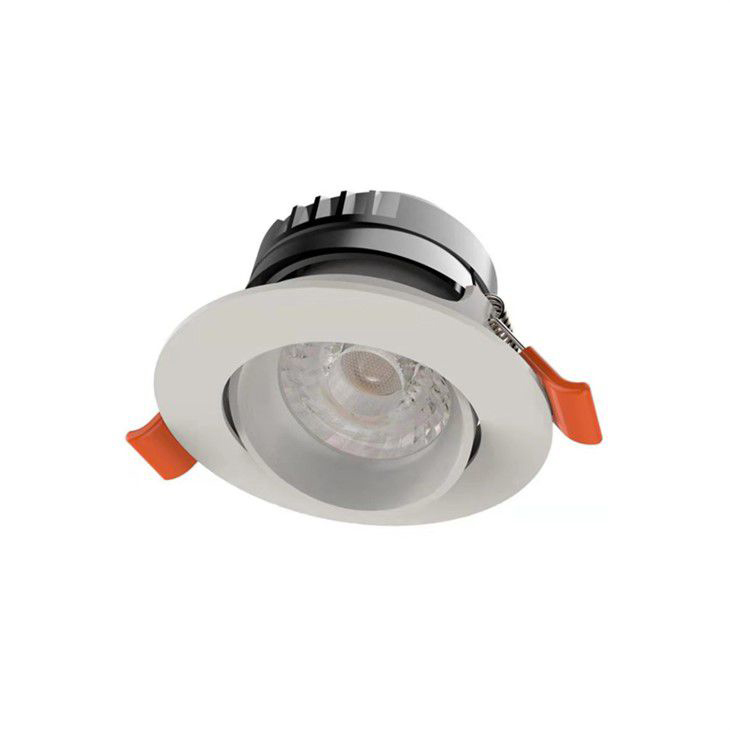

LED Downlight COB Series
LED Downlight COB Series
16558665799487427
LED Downlight COB Series
Code No.
Product benefits

COB LEDs

luminum housing

Energy-saving

Product data sheet
PRODUCT DETAILS
TECHNICAL DATA AND BENEFITS

Features

1. COB LEDs

2. Aluminum housing

3. Energy-saving


Application

Shopping mall, hotel, showroom, office etc.


Name Voltage (V)Power (W)Lumens (lm)CCT (K)CRIPFDimension(mm)Cut-out(mm)ColorMaterialsInstallation
DL-CO07WAC220-240V7W560lm3000K/4000K/6000K800.5Φ90*40mm75mmwhiteAL+Glassrecessed
DL-CO10WAC220-240V10W800lm3000K/4000K/6000K800.5Φ118*48mm95mmwhiteAL+Glassrecessed
DL-CO20WAC220-240V20W1800lm3000K/4000K/6000K800.5Φ169*48mm140mmwhiteAL+Glassrecessed
DL-CO30WAC220-240V30W2800lm3000K/4000K/6000K800.9Φ230*56mm195-200mmwhiteAL+Glassrecessed
