Home Products For-Professional Indoor Lighting LED Batten LED T5 Batten - PC series
OVERVIEW
Product description
Product data sheet

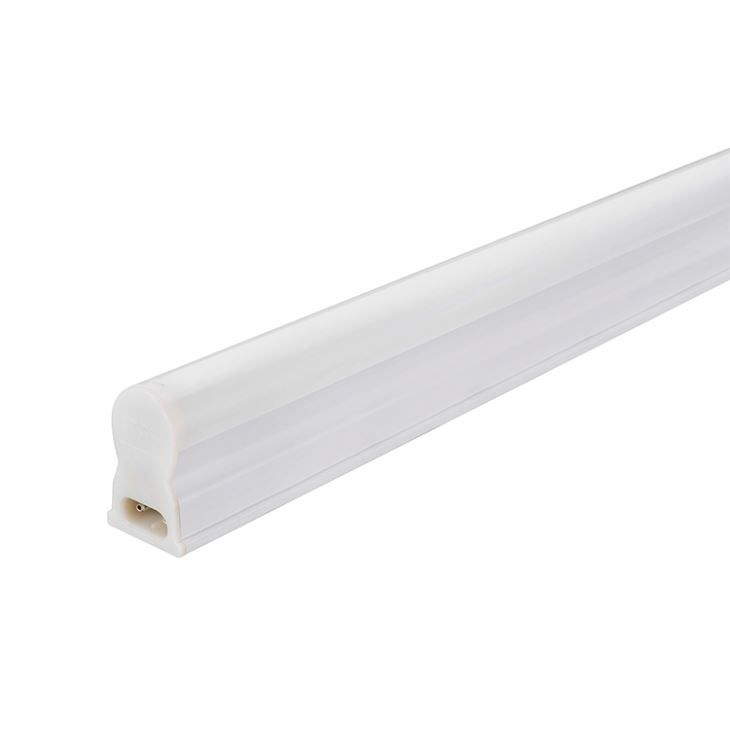

LED T5 Batten - PC series
LED T5 Batten - PC series
16558665799487427
LED T5 Batten - PC series
Code No.
Product benefits
LED T5 Batten is made of PC material with clean design. The batten lighting fixture can be applied in shopping mall, office, showroom, etc.
Product data sheet
PRODUCT DETAILS
TECHNICAL DATA AND BENEFITS

Basic Info

- Rated Power: 4W / 7W / 10W / 14W

- CCT: 3000K/4000K/6000K optional

- 90Lm/W and 2 years warranty

- Application: shopping mall, office, showroom, etc.


Model NO.

Voltage (V)

Power (W)

Lumens (LM)

Lighting Effect

CCT (K)

CRI

PF

Length

Material

PC-313

AC220-240V

4W

330lm

>80lm/w

3000/4000/6000K

≥80

0.5

0.3M / (313mm)

PC

PC-565

AC220-240V

7W

630lm

>90lm/w

3000/4000/6000K

≥80

0.5

0.6M / (565mm)

PC

PC-873

AC220-240V

10W

900lm

>90lm/w

3000/4000/6000K

≥80

0.5

0.9M / (873mm)

PC

PC-1175

AC220-240V

14W

1250lm

>90lm/w

3000/4000/6000K

≥80

0.5

1.2M / (1175mm)

PC


1

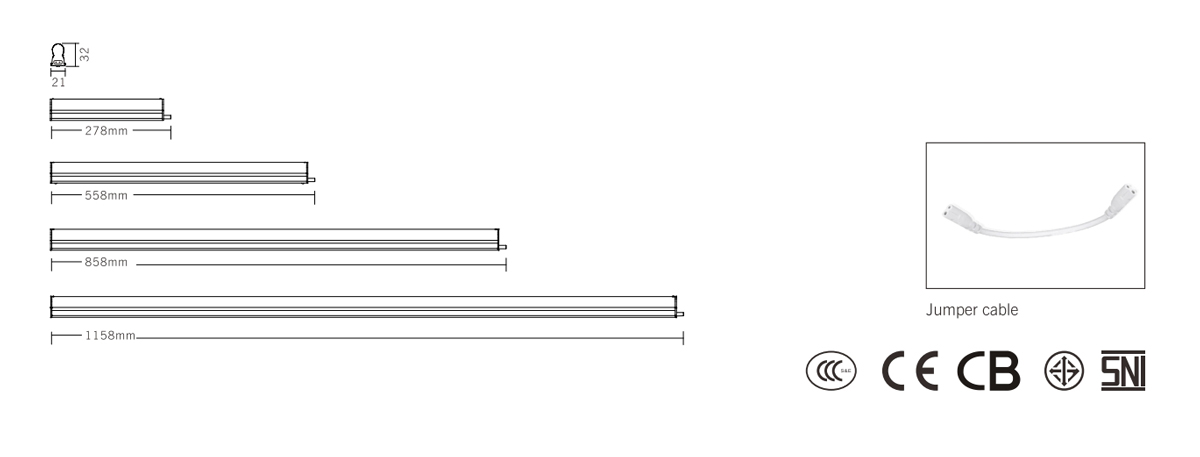

Dimensions

2


Product Features

LED T5 Batten pass EMC & EMI, can save up to 50% of electrical energy. PC cover design make the body lighter which can save freight cost.

Using built-in constant current LED driver allows it to operate normally and has short-circuit protection. In addition, fool-proofing design assure its safe installation to avoid hidden danger.

The Beam angle is 130°for big lighting scope.


Application

-Shopping mall, showroom, office etc.


FAQ

Q1. Are you a manufacturer or trading company?

We are an OEM/ODM factory, and we established our company since 2000.


Q2. Can your T5 Batten do higher efficacy and longer warranty?

Yes, we can use higher configuration based on customers’ requirements to achieve higher performance.
